Description

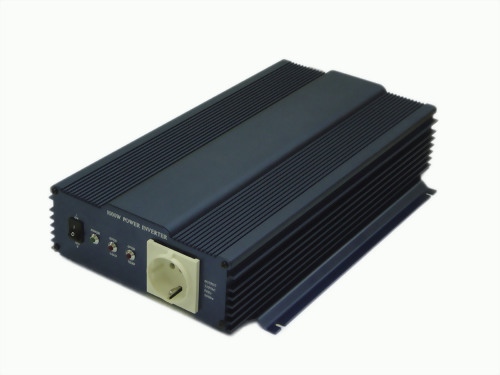

Looking for a suitable inverter? Welltron’s 1000W pure sine wave inverter can provide pure and stable power for your sensitive electronic devices, such as sump pumps, computers, radio equipment, home theaters, etc. It is the solution for converting DC power to AC power for various applications, such as computers and radio equipment. It offers a surge power output of 2000W, depending on different types, and a continuous power output of 1000W. Total harmonic distortion is less than 3%. Its efficiency is up to 85%. It is CE-approved. Besides, It has built-in protection features, including over-temperature, low battery, short circuit, and over-voltage protection to prevent accidents and damage.

We are committed to providing power solutions that meet the market demand. Our 1000W pure sine wave inverter meets the highest standards of quality and performance, ensuring that it will provide reliable and efficient power for you. In addition, we strive to offer reliable solutions for our clients.

With over 40 years of experience, Welltron has earned the trust and confidence of clients all over the world. You can count on our inverter which keeps your devices operating smoothly. Please do not hesitate to contact us for more details. Scroll down to learn more about our 1000W pure sine wave inverter, and you will surely find the inverter that matches your specific requirements.

PROTECTION

• Input Low Voltage
• Input Over Voltage
• Low Battery Alarm
• Over Temperature
• Over Load
• Short Circuit

APPROVAL

• CE
• E-Mark

COUNTRY OF ORIGIN

• Taiwan

Specification

Model	100S-12E	100S-12A	100S-24E	100S-24A
Continuous output power	1,000W
15 minutes' output power	1,200W
Surge output power	2,000W
Max. input current	100A		50A
Output voltage	230 VAC ± 3%	115VAC ± 3%	230VAC ± 3%	115VAC ± 3%
Output frequency	50 Hz	60Hz	50Hz	60Hz

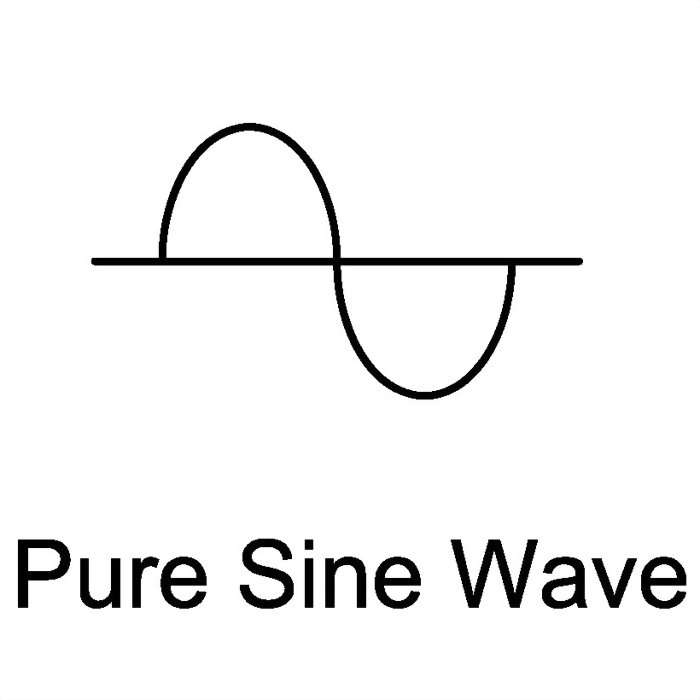

Output wave form	Pure sine wave
Total harmonic distortion	<3%
Idle current	<1.2A	<0.8A	0.8A	0.6A
Input voltage range	12V(10.7~16.5V)		24V(21.4~33V)
Low voltage alarm	10.7V		21.4V
Low voltage shutdown	10V		20V
Efficiency up to	85%
Dimension (L * W * H)	395 * 236 * 83 mm
Weight	4 kgs
Option	Remote control RC-15

Features

• Switching mode design
• High efficiency
• Low THD (total harmonic distortion)

Applications

• Home Electronics
• Office Equipment
• Hand Tools
• Electric Appliances
