Description

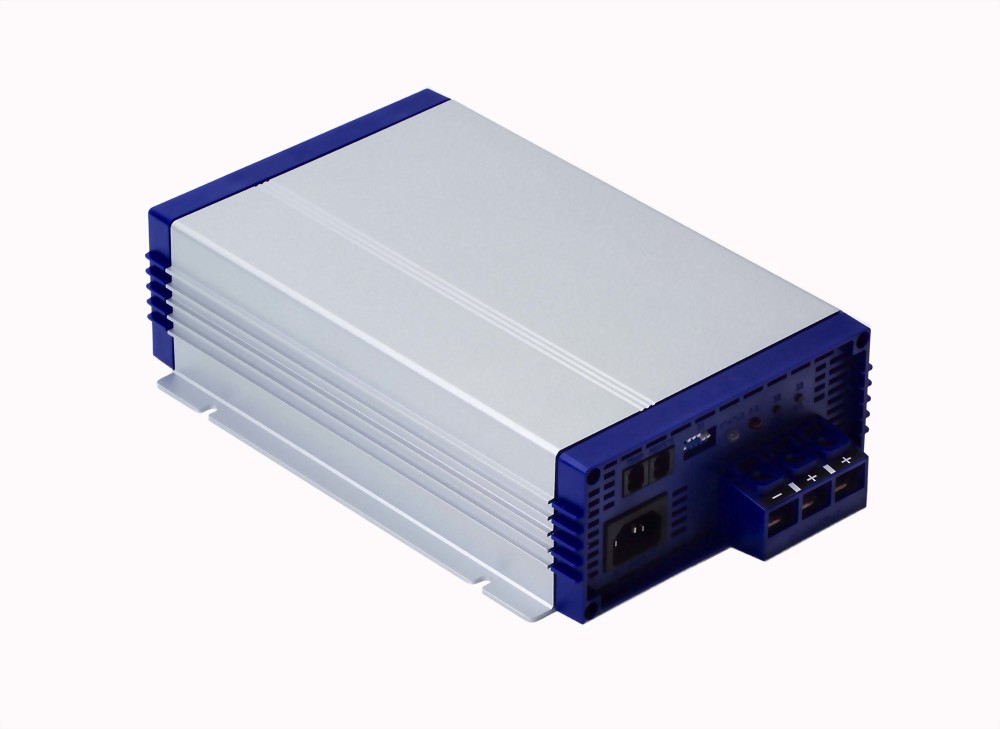

WSC-2415 is an AC-to-DC 24V 15Amp with a built-in 4-stage smart battery charger - a high-efficiency, compact, lightweight, and multiple protection design that keeps the battery in perfect condition and is ideal for all kinds of Lead-Acid/GEL/AGM batteries.

KEY FEATURES

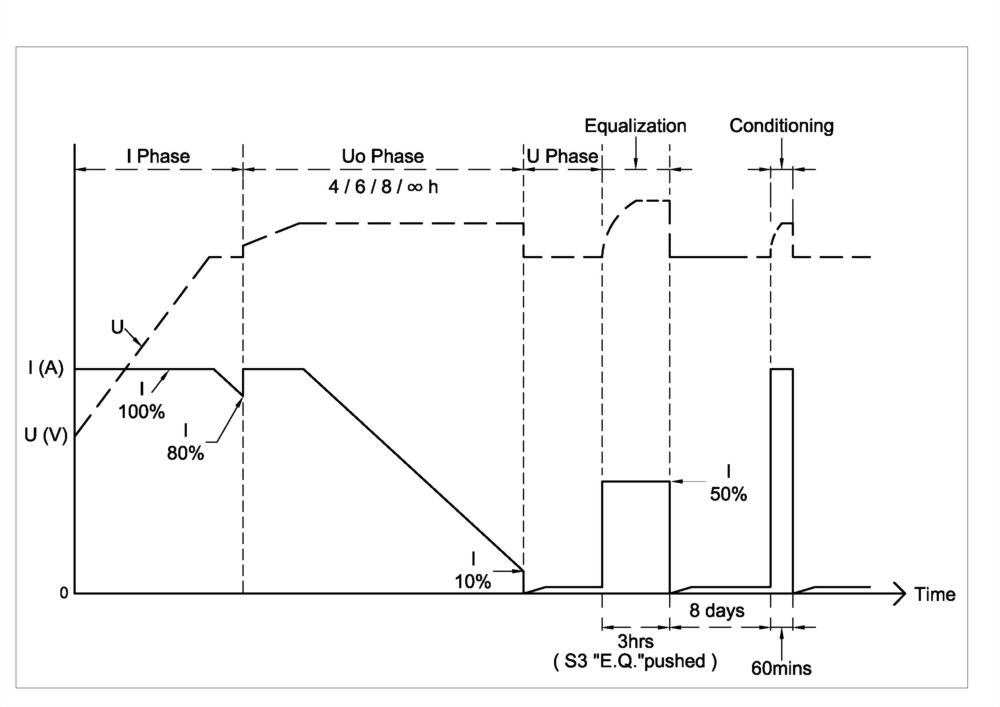

• Fully automatic 4-stage chargers (I-Uo-U-Equalization).
• Full range AC input.
• High efficiency.
• Microprocessor controller inside.
• The battery charger and power supply mode are selectable.

PROTECTION

• Short circuit protection
• Over voltage protection
• Over current protection
• Over temperature protection
• Battery over temperature charging protection

APPROVAL

• CE

COUNTRY OF ORIGIN

• Taiwan

Specifications

• Input voltage range: 100 ~ 240V AC
• Input frequency: 50 ~ 60Hz
• Power factor correction: >0.97
• Efficiency at 230V AC: >91%
• Efficiency at 115V AC: >88%
• Input current at 230V AC: 2.2A
• Input current at 115V AC: 4.2A
• Charge mode: Normal 3-Stage / Equalization 4-Stage
• Output charging voltage: 28V / 28.8V / 29.6V
• Output float voltage: 27V / 27.6V
• Output power mode voltage: 26.4V
• Output charge current: 0 ~ 15A
• Equalization mode: 29.6V / 31V (0 ~ 8A)
• Half power mode (Silent mode): 0 ~ 8A
• Battery connection: 2
• Battery capacity: 200Ah
• Operating temperature: -20°C ~ 50°C
• Dimension (L * W * H): 265 * 171 * 70 mm
• Weight: 1.6 kg
• Option: Remote control RC-600
• Option: Temperature compensation TF-100

Features

• Microprocessor controller inside.
• Full range AC input.
• Power factor correction>0.97.
• High efficiency.
• 4 Stages charging I-Uo-U-Equalization.
• Battery charger and power supply selectable.
• Compact and lightweight.
• Maintains batteries in perfect condition and prolongs their useful life.

Applications

• Battery types: Lead-acid/GEL/AGM
