INVERTER

500W/12V COMPACT INVERTER

1U height. Rack mountable.
Voltage adjustable.
Frequency adjustable.
External switch control.
Model : WT-50S-12E

PROTECTION

  • Input Low Voltage.
  • Input Over Voltage.
  • Over Temperature.
  • Over Load.
  • Short Circuit.

APPROVAL

  • CE

COUNTRY OF ORIGIN

Taiwan

  • Continuous output power: 500W
  • Surge output power: 800W
  • Rated input voltage: 12VDC
  • Output voltage: 230VAC ± 3% (default)
  • Output frequency: 50Hz ± 1% (default)

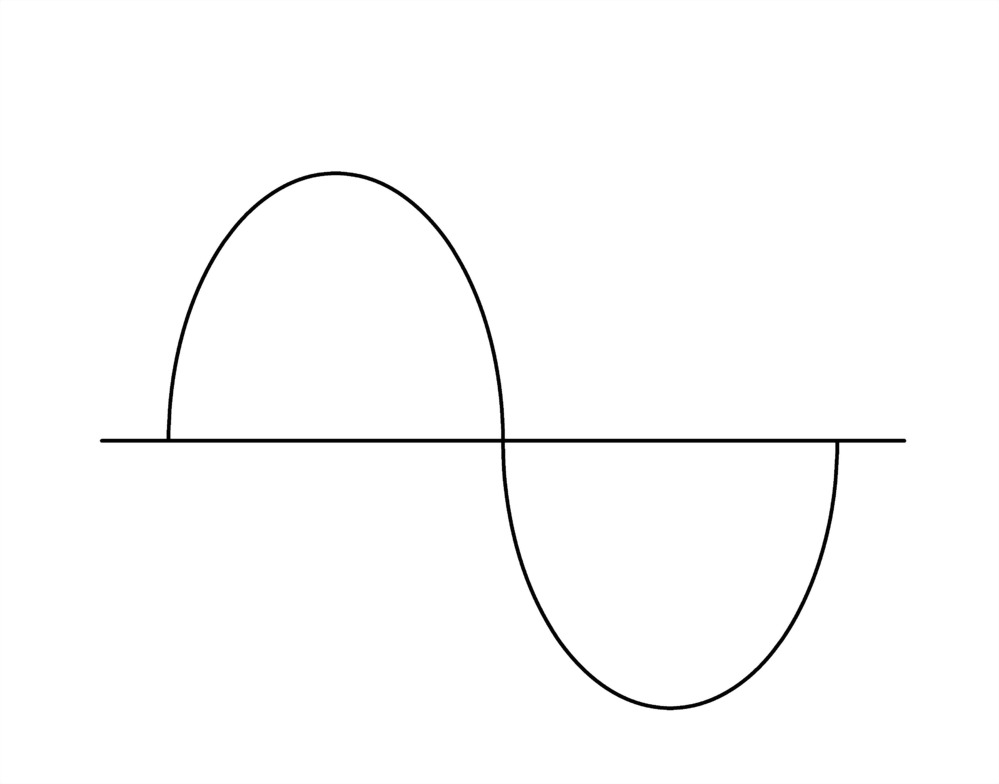

  • Output wave form: Pure sine wave
  • Total harmonic distortion: <2%
  • Idle current: <0.8A
  • Input voltage range: 10.7V - 16V
  • Low voltage shutdown: 10V
  • Efficiency > 88%
  • Dimension (L x W x H): 250 x 148 x 44 mm
  • Weight: 1.8kg
  • Fan: Temperature Control
  • Operating temperature: -20 ~ 50°C
  • Compact and light weight design.
  • High efficiency.
  • Low harmonic distortion.
  • Voltage adjustable.
  • Frequency adjustable.
  • Home Electronics.
  • Office Equipment.
  • Appliances.
