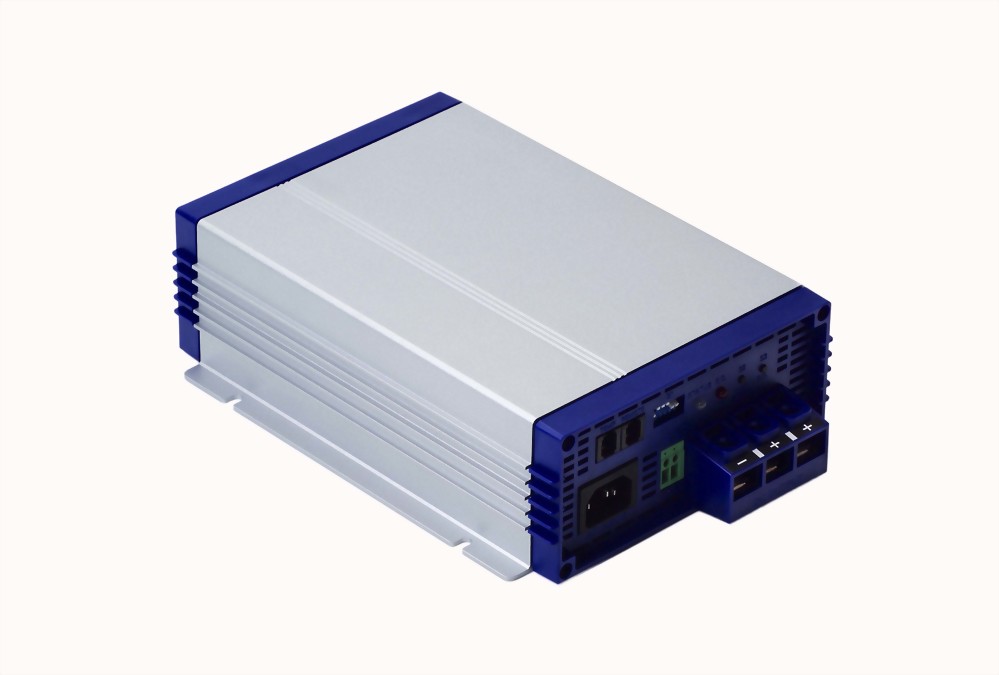

12V/15A BATTERY CHARGER - W/2A OUTPUT FOR STARTER BATTERY

Fully automatic four-stage chargers are ideal for charging all types of lead acid batteries.
PROTECTION
Short Circuit Protection.
Over Voltage Protection.
Over Current Protection.
Battery Charger Over Temperature.
Battery Over Temperature.
Model : WSC-1215-SB

PROTECTION

  • Short Circuit Protection.
  • Over Voltage Protection.
  • Over Current Protection.
  • Battery Charger Over Temperature.
  • Battery Over Temperature.

APPROVAL

  • CE

COUNTRY OF ORIGIN

Taiwan

  • Input voltage range: 100 - 240VAC
  • Input frequency: 50 - 60Hz
  • Power factor correction: >0.97
  • Efficiency at 230VAC: >90%
  • Efficiency at 115VAC: >87%
  • Input current at 230VAC: 1.1A
  • Input current at 115VAC: 2.3A
  • Charge mode: Normal 3-Stage / Equalization 4-Stage
  • Output charging voltage: 14V / 14.4V / 14.8V
  • Output float voltage: 13.5V / 13.8V
  • Output power mode voltage: 13.2V
  • Output charging current: 0 - 15A
  • Equalization mode: 14.8V / 15.5V (0 - 8A)
  • Half power mode (Silent mode): 0 - 8A
  • Battery connection: 2
  • Battery capacity: 150Ah
  • SB charging voltage: 13.8V
  • SB charging current: 2A
  • SB connection (Starter battery): 1
  • Operating temperature: -20°C ~ +50°C
  • Storage temperature: -40°C ~ +85°C
  • Air humidity: 10 - 90%
  • Dimension (L x W x H): 245 x 171 x 70 mm
  • Weight: 1.4 kgs
  • Option-Remote control: RC-600
  • Option-Temperature compensation: TF-100
  • Microprocessor controller inside.
  • Full range input.
  • Power factor correction > 0.97.
  • High efficiency > 90 % (230VAC).

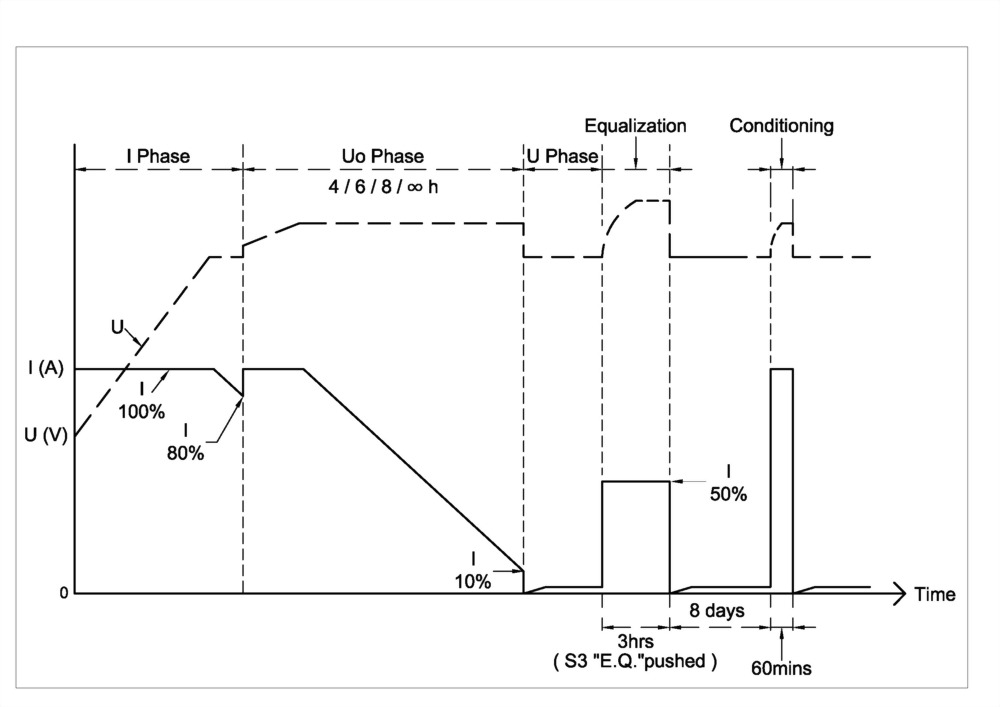

  • 4 Stages charging I-Uo-U-Equalization.
  • Battery charger and power supply selectable.
  • Compact and light weight.
  • Maintains batteries in perfect condition and prolong their useful life.
Battery Types: Lead-acid / GEL / AGM / Li-lon
