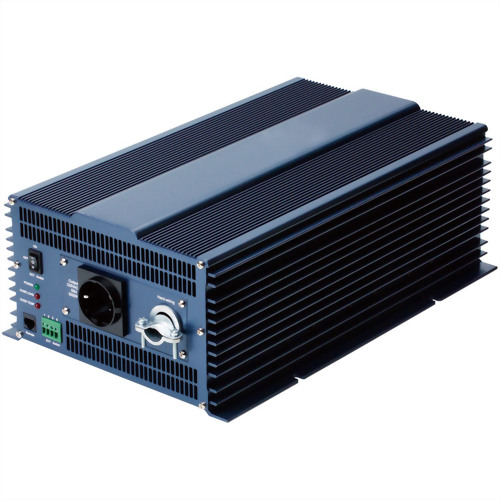

3000W12V PURE SINE WAVE INVERTER

Provide clean and stable power for computers, radio equipment, home theaters and other applications.
PROTECTION
Input Low Voltage.
Input Over Voltage.
Low Battery Alarm.
Over Temperature.
Over Load.
Short Circuit.
Model : 300S-12E

PROTECTION

  • Input Low Voltage.
  • Input Over Voltage.
  • Low Battery Alarm.
  • Over Temperature.
  • Over Load.
  • Short Circuit.

APPROVAL

  • CE

COUNTRY OF ORIGIN

Taiwan

  • Continuous output power: 3000W
  • 10 minutes' output power: 3200W
  • Surge output power: 6000W
  • Max. input current: 360A
  • Output voltage: 230VAC ± 3%
  • Output frequency: 50Hz ± 1%
  • Output wave form: Pure sine wave
  • Total harmonic distortion: <3%
  • Idle current: <1.9A
  • Input voltage range: 10.7V - 16.5V
  • Low voltage alarm: 10.7V ± 0.1V
  • Low battery shutdown: 10V ± 0.1V
  • High voltage shutdown: >16.5V
  • Overload shutdown: ≥3300W
  • Short circuit shutdown: 1 ~ 1.5 Second
  • Over temperature shutdown: 90 ± 5°C (Transformer T3)
  • Over temperature restart: 65 ± 5°C (Transformer T3)
  • Ground fault shutdown: None
  • Input reverse protection: Fuse
  • Cooling: Temperature controlled fan
  • Fan on: 55 ± 3°C (Transformer T6)
  • Fan off: 45 ± 3°C (Transformer T6)
  • Operating temperature: -20 ~ 40°C
  • Efficiency up to: >88%
  • Dimension (L x W x H): 456.5 x 263 x 145 mm
  • Weight: 9.8 kgs
  • Option: Remote control RC-300
  • Input and output fully isolated design.
  • Pure sine wave output (THD <3%).
  • Efficiency max. >90%.
  • Temperature controlled cooling fan.
  • Power meter (to go with RC-300).
  • Hardwiring.
  • Home Electronics.
  • Office Equipment.
  • Hand Tools.
  • Appliances.
