Description

WSC-1250 is an AC-to-DC 12V 50A smart battery charger with a built-in 4-stage design: high-efficiency, compact, lightweight, and multiple protection that keeps the battery in perfect condition and is ideal for all kinds of industry battery charging, such as Lead-Acid batteries, GEL battery and AGM battery, etc.

KEY FEATURES

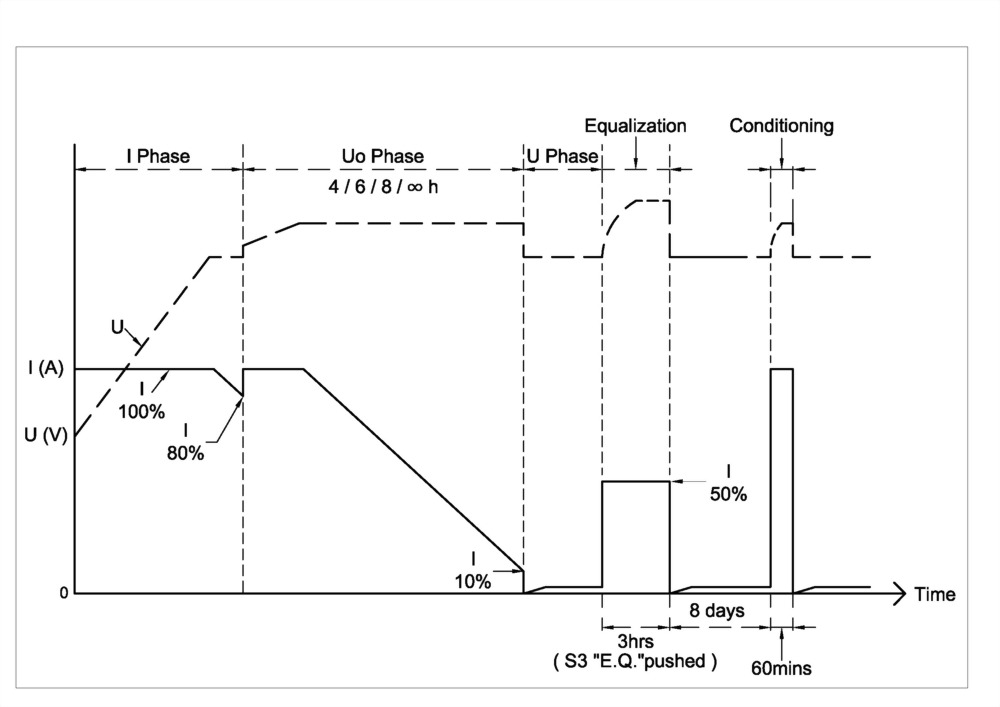

• Fully automatic 4-stage chargers (I-Uo-U-Equalization).
• Full range AC input.
• High efficiency.
• Microprocessor controller inside.
• The battery charger and power supply mode are selectable.

PROTECTION

• Short circuit protection
• Over voltage protection
• Over current protection
• Over temperature protection
• Battery over temperature charging protection

APPROVAL

• CE

COUNTRY OF ORIGIN

• Taiwan

Specifications

• Input voltage range:100~240V AC
• Input frequency: 50~60Hz
• Power factor correction: >0.97
• Efficiency at 230V AC: >91%
• Efficiency at 115V AC: >89%
• Input current at 230V AC: 3.62A
• Input current at 115V AC: 7.32A
• Charge mode: Normal 3-Stage/Equalization 4-Stage
• Output charging voltage: 14V/14.4V/14.8V
• Outputfloat voltage: 13.5V/13.8V
• Output power mode voltage: 13.2V
• Output charging current: 0~50A
• Equalization mode: 14.8V/15.5V (0~25A)
• Half power mode (Silent mode): 0~25A
• Battery connection: 3
• Battery capacity: 500Ah
• Operating temperature: -20°C ~ 50°C
• Dimension (L * W * H): 292*210*75 mm
• Weight: 2.5 kg
• Option: Remote control RC-600 or RC-601D
• Option: Temperature compensation TF-100

Features

• Microprocessor controller inside.
• Full range AC input.
• Power factor correction > 0.97.
• High efficiency.
• 4 Stages charging I-Uo-U-Equalization.
• Battery charger and power supply selectable.
• Compact and lightweight.
• Maintains batteries in perfect condition and prolongs their useful life.

Applications

• Battery types: Lead-acid/GEL/AGM
