Description

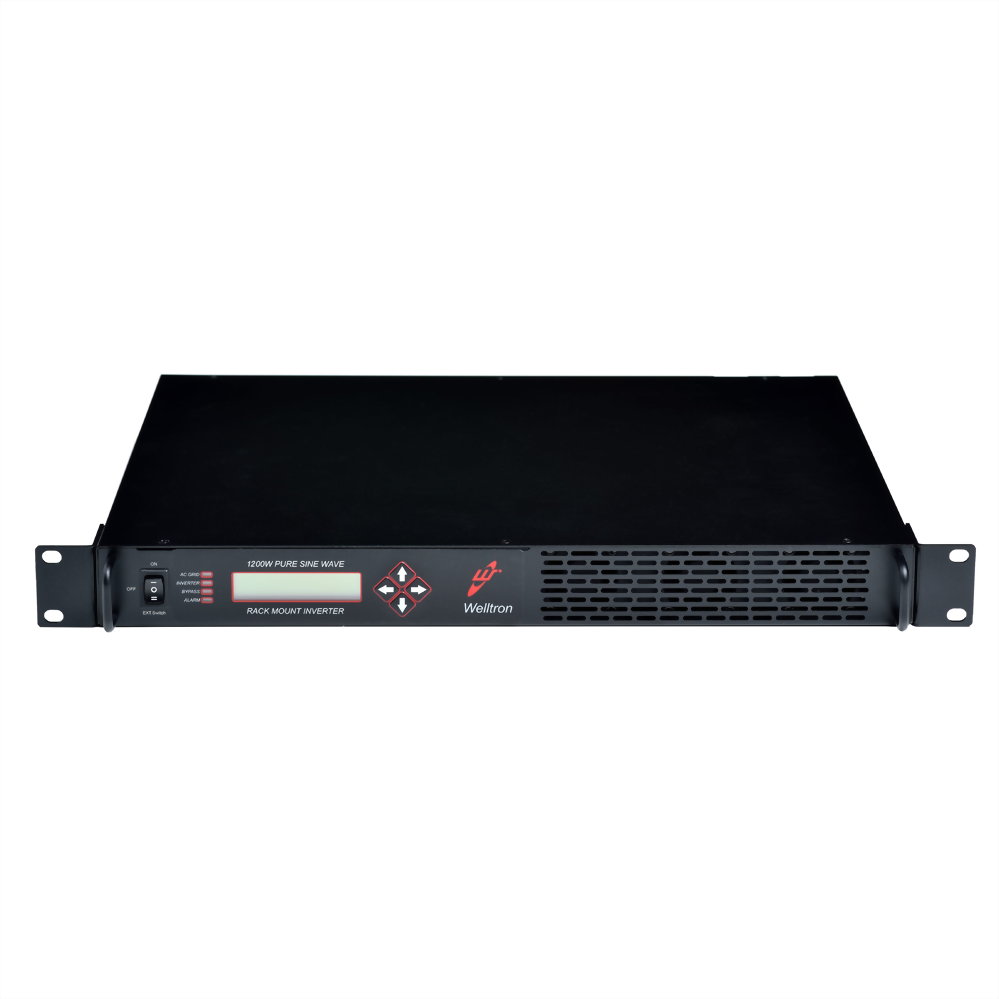

1U 1200W pure sine wave inverter is designed for rack mount installation. The unit features 24V/48V input AC and provides stable & clean power that is perfect for use in telecommunication and communication applications. The term ‘1U’ means one unit of rack mount, which equals 44.45 mm.

•  It is MCU-based and capable of providing power for resistive, capacitive, or inductive loads with high stability.
• It has a built-in Transfer Switch function that synchronizes with wall power. When a blackout occurs, power from batteries can be supplied immediately to load.

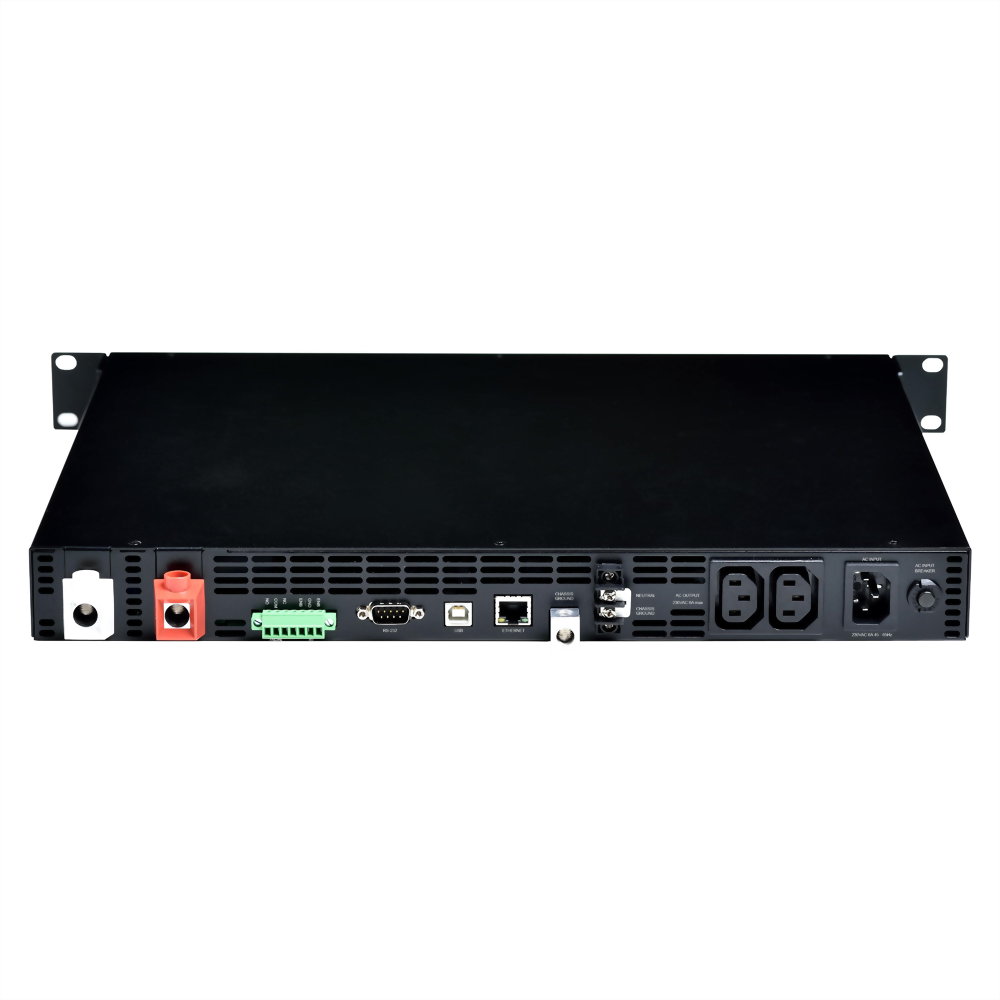

• It provides RS-232, USB, and Ethernet ports for firmware updates and real-time inverter status monitoring.
• Safety Protection: Including Overtemperature protection, short circuit protection, input reverse polarity protection, etc.

Besides the 1U 1200W pure sine wave inverter, Welltron has the capability to offer a wide range of other rack mount inverters for different applications and requirements, as we have professional inverter experts with over 40 years of experience. Please do not hesitate to contact us for technical support or for a special requirement. We would be more than happy to hear from you.

PROTECTION

• Input low voltage alarm
• Input over-voltage alarm
• Input under voltage protection

• Input over-voltage protection
• Overload protection
• Over temperature protection

• Short circuit protection

• Input reverse polarity protection


APPROVAL

• WSI-120SU-24E/WSI-120SU-48E: CE.
• WSI-120SU-24A/WSI-120SU-48A: Meet UL 62368-1, FCC part 15 (B) class B.


COUNTRY OF ORIGIN

• Taiwan

Specification

Model		WSI-120SU-24E	WSI-120SU-24A	WSI-120SU-48E	WSI-120SU-48A
DC input	Rated Voltage	24V DC		48V DC
	Voltage range	20 ~ 34 V DC		40 ~ 60 V DC
	No load current	<0.9A	<0.6A	<0.7A	<0.4A
	OVP	25 ~ 35 V DC (user adjustable)		50 ~ 61 V DC (user adjustable)
	UVP	20 ~ 23 V DC (user adjustable)		35 ~ 46 V DC (user adjustable)
AC input	Voltage	200 ~ 240 V AC	100 ~ 120 V AC	200 ~ 240 V AC	100 ~ 120 V AC
	Frequency	50/60 Hz
	Max. current	6A		12A
AC output	Continuous output power	1,200W
	Surge power	2,000W
	Frequency	45 ~ 65Hz (User selectable)
	Output voltage	200 ~ 240 V AC (User selectable)	100 ~ 120 V AC (User selectable)	200 ~ 240 V AC (User selectable)	100 ~ 120 V AC (User selectable)
	Efficiency max. (full load)	> 90%	88%	> 91%	>90%

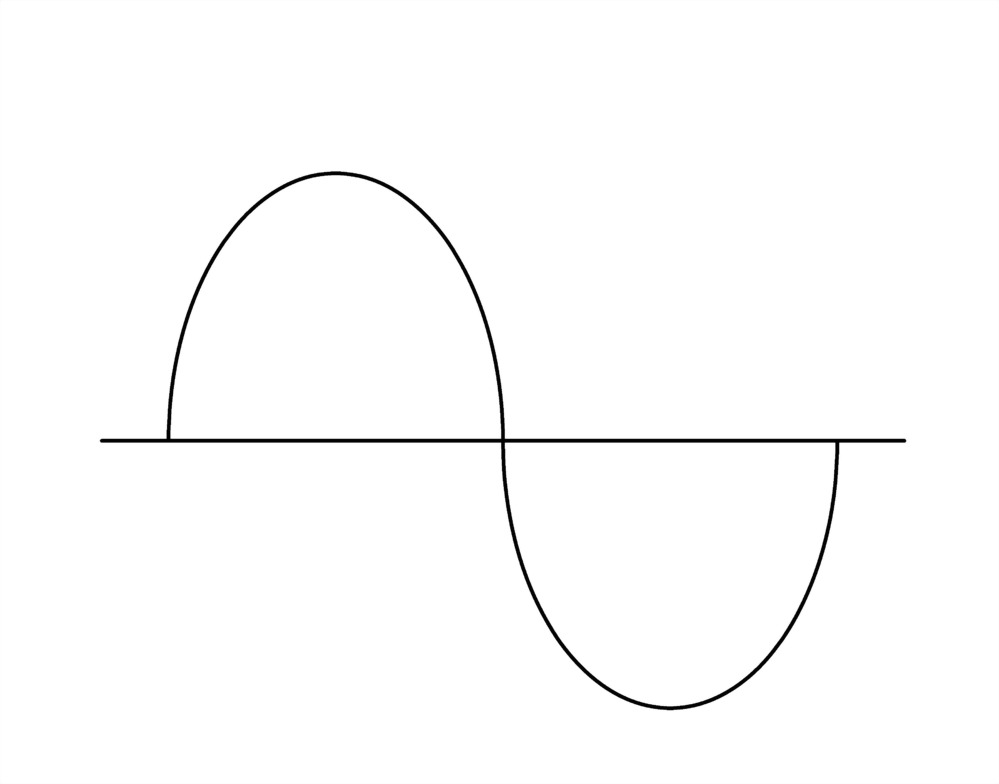

	Output waveform	Pure sine wave (THD<2%)
Protection	DC input protection	UVP/OVP/Reverse polarity (Internal fuse)
	AC input protection	6 Amp circuit breaker	15 Amp circuit breaker	6 Amp circuit breaker	15 Amp circuit breaker
	AC output protection	Overload/Short circuit
	Temperature protection	Shutdown (Internal heat sink temperature>105°C)
	Buzzer alarm / Dry contact terminal	UVP/OVP/Overload/Fan failure/Over temperature(User selectable)
Display and control	LCD panel	2 Line LCD panel
	LED indicator	Red/Green/Orange
	Dry control terminal	Relay
	Remote control terminal	Control the inverter power ON/OFF
Bypass relay	Relay specification	15 Amp/250 VAC
	Bypass relay selectable	On line/Off line (User selectable)
Switching time	From grid AC to inverter	≦8 ms
	From inverter to Grid AC	≦8 ms
Fan operation	Failure indication	Buzzer alarm and dry contact
	Fan On when	Load≧300W or heat sink temperature≧50°C
	Fan Off when	Load≦280W and heat sink temperature<45°C
Temperature	Operation temperature range	0 ~ 50°C
Mechanical	W * H * D (mm)	420 * 44 * 345 mm
Weight		7 kgs

Features

• 1U rack mount design
• Input and output fully isolated design
• Advanced microprocessor
• Pure sine wave output (THD<2%)
• Efficiency max.>91%
• Smart controlled cooling fan according to temperature and load
• LEDs display operational status and fault indications
• LCD power meter display (Vac/Iac/F/Vdc/Pout)
• Set internal parameters by LCD or USB
• Built-in transfer switch and 6A breaker
• Synchronized to grid AC
• Ethernet web/SNMP monitoring
• RS-232/USB communication
• Firmware upgrade/backup

Applications

• Telecom & Communication
• Industrial Applications
• Office Equipment
• Power Tools
