Description

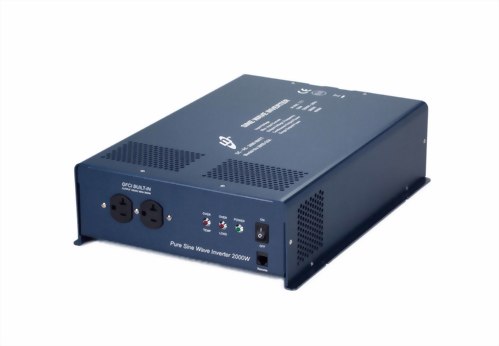

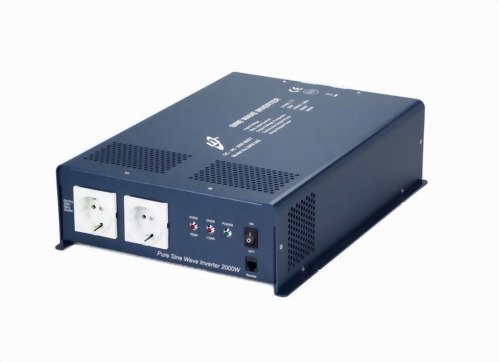

The 2000W pure sine wave inverter provides stable 2000W power with a peak surge power of 4000W. It provides high-quality AC power, perfect for your sensitive electronic devices. It ensures a pure sine wave output. It can handle truck batteries, van batteries, most hand tools, home electronics, radios, computers, and office equipment that people commonly use in their daily lives.

We have 4 types of 2000W pure sine wave inverters here for your needs. Not only does the Pure Sine Wave Inverter 2000W provide reliable and stable power, but it also comes equipped with a variety of protection features. The built-in protections give you alarms when there is overload, over-temperature, low/over voltage, or short circuit. These protections prevent your battery and devices from being damaged. The switch-mode design consumes very little power when there is nothing connecting to the inverter. Scroll down to learn more about our products.

With experience over four decades, Welltron is confident in product quality and service. Our inverter is designed to meet your power needs with efficiency and reliability. Our products are CE-approved. As one of the leading inverter manufacturers in Taiwan, we are continuously developing and improving new products to meet existing market demands. Please do not hesitate to contact us for more details!

PROTECTION

• Input Low Voltage
• Input Over Voltage
• Low Battery Alarm
• Over Temperature
• Overload
• Short Circuit

APPROVAL

• CE
• E-Mark

COUNTRY OF ORIGIN

• Taiwan

Specification

Model	200S-12E	200S-12A	200S-24E	200S-24A
Continuous output power	2,000W
15 minutes' output power	2,200W
Surge output power	4,000W
Max. input current	240A		120A
Output voltage	230V AC ± 3%	115V AC ± 3%	230V AC ± 3%	115V AC ± 3%
Output frequency	50Hz	60Hz	50Hz	60Hz

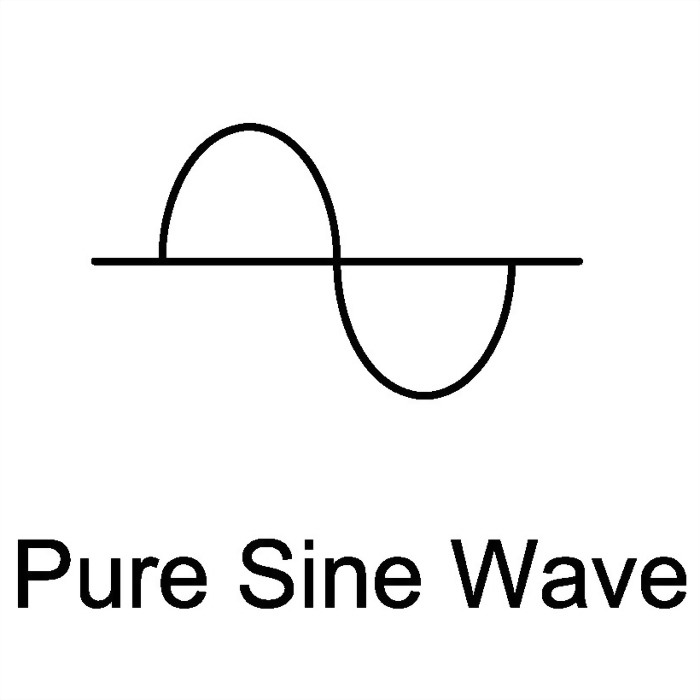

Output wave form	Pure sine wave
Total harmonic distortion	<3%
Idle current	<1.6A	<1A	<1A	<0.8A
Input voltage range	12V (10.7 ~ 16.5V)		24V (21.4 ~ 33V)
Low voltage alarm	10.7V		21.4V
Low voltage shutdown	10V		20V
Efficiency up to	85%
Dimension (L * W * H)	415 * 283 * 100 mm
Weight	5.9 kgs
Option	Remote control RC-15

Features

• Switching mode design
• High efficiency
• Low THD (total harmonic distortion)

Applications

• Truck, Van
• Home Electronics
• Office Equipment
• Power Tools
• Various Electric Appliances
