Description

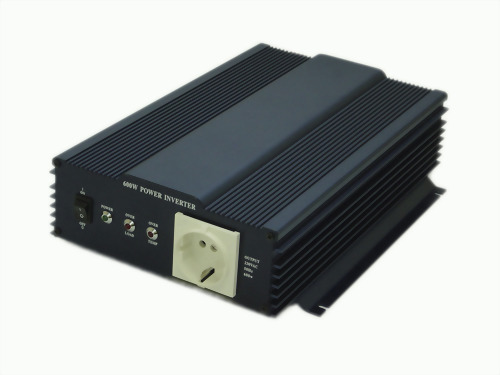

60S Series are 12V 600W Pure Sine Wave Power Inverters that provide clean and stable power for computers, radio equipment, home theaters, and other applications.

PROTECTION

• Input Low Voltage
• Input Over Voltage
• Low Battery Alarm
• Over Temperature
• Over Load
• Short Circuit

APPROVAL

• CE
• E-Mark

COUNTRY OF ORIGIN

• Taiwan

Specification

Model	60S-12E	60S-12A	60S-24E	60S-24A
Continuous output power	600W
15 minutes' output power	650W
Surge output power	1,000W
Rated input voltage	12V DC		24V DC
Max. input current	70A		40A
Output voltage	230V AC ± 3%	115V AC ± 3%	230V AC ± 3%	115V AC ± 3%
Output frequency	50Hz	60Hz	50Hz	60Hz

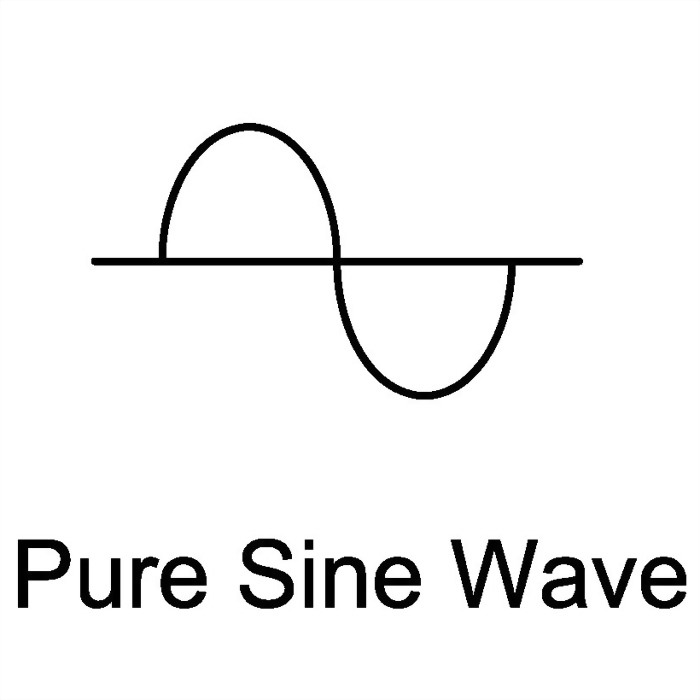

Output wave form	Pure sine wave
Total harmonic distortion	<3%
Idle current	<0.8A	<0.6A	0.6A	<0.45A
Input voltage range	10.7V ~ 16.5V		21.4V ~ 33V
Low voltage alarm	10.5V	10.7V	21V	21.4V
Low voltage shutdown	10V		20V
Efficiency up to	85%
Dimension (L * W * H)	280 * 236 * 83 mm
Weight	2.46 kgs
Option	Remote control RC-15

Features

• Switching mode design
• High efficiency
• Low THD (total harmonic distortion)

Applications

• Consumer Electronics
• Office Equipment
• Hand Power Tools
• Home Appliances
