Description

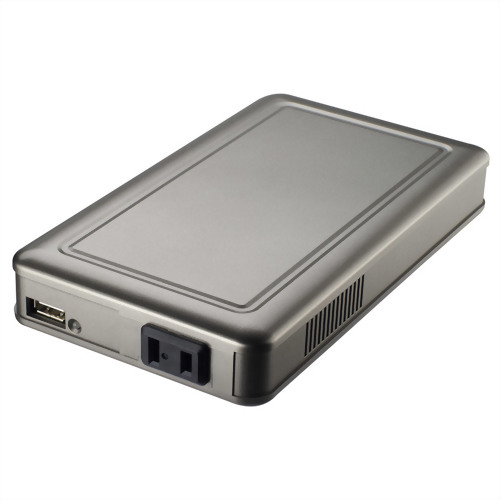

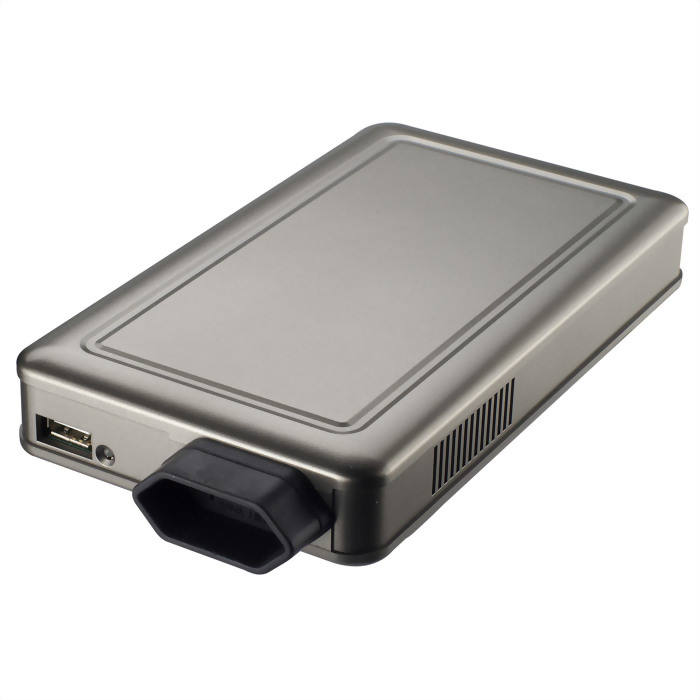

Welltron 120W pure sine wave inverter converts 12V/24V DC input to 230V AC output; portable, compact, and lightweight and suitable for handset devices, industrial carts, medical carts, inverter trolleys, hand trucks, and portable photography kits.
This fully portable inverter provides reliable, clean power output and multiple protection to prevent short circuits, over-temperature, over- or low-voltage, and another potential shutdown. The 120W inverter comes in the size of 20.4 * 10.5 * 3 mm (L * W * H), which, is significantly smaller than other same 120W inverters on the marketplaces, and its product weight is approx. 0.5kg is also much lighter than other common 120W inverters. This makes it the best fit for those applications with minimum size requirements.

Scroll down to learn more about our standard 120W power inverter models and feel free to contact us for special requirements.

PROTECTION

• Input Low Voltage
• Input Over Voltage
• Over Temperature
• Overload
• Short Circuit

APPROVAL

• CE

COUNTRY OF ORIGIN

• Taiwan

Specification

Model	WT-12S-12E	WT-12S-12A	WT-12S-24E	WT-12S-24A
Continuous output power	120W
Surge output power	200W
Rated input voltage	12V DC		24V DC
Max. input current	15A		7.5A
Output voltage	230V AC ± 3%	115V AC ± 3%	230V AC ± 3%	115V AC ± 3%
Output frequency	50Hz ± 1%	60Hz ± 1%	50Hz ± 1%	60Hz ± 1%

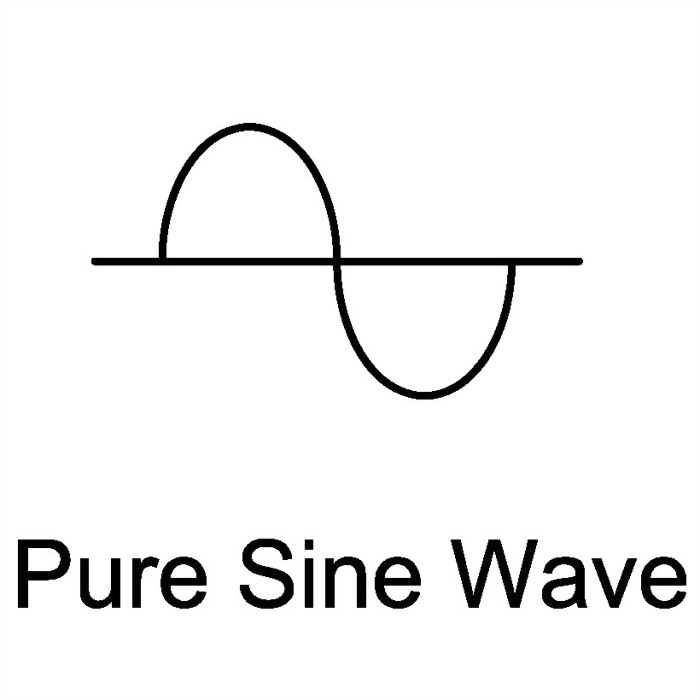

Output wave form	Pure sine wave
Total harmonic distortion	<3%
Idle current	<0.5A		<0.3A
Input voltage range	12V(10 ~ 16.5V)		24V(20 ~ 33V)
Low voltage shutdown	10V		20V
Efficiency up to	88%
Dimension (L * W * H)	190 * 105 * 30 mm
Weight	453 g
Fan	Temperature Control
Operating temperature	0 ~ 40°C
USB power	5V ± 0.1V / 500mA

Features

• Compact and lightweight
• High efficiency and portable
• Low THD (total harmonic distortion)
• USB port to power 3C electronic products

Applications

• Medical Devices
• Consumer Electronics
• Office Equipment
• Small Power Tools
• Home Appliances
• Strobe Lights
