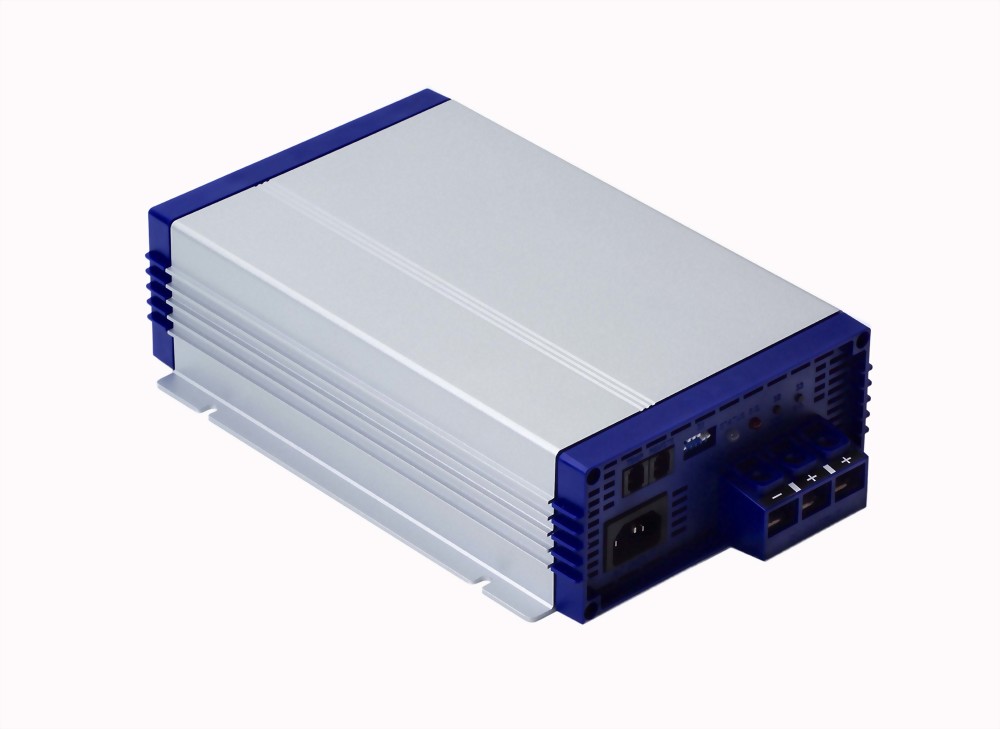

WSC-1230 is AC-to-DC 12V 30Amp charger with built-in 4 stage smart battery - high-efficiency, compact, lightweight and multiple protection design ideal for all kind of Lead-Acid/GEL/AGM batteries.
There is a microprocessor controller in the charger to control voltage and monitor current. This way, it can improve charging accuracy and battery life. The input voltage range is from 100V to 220V and the frequency range is between 50Hz and 60Hz.
The advantages of the fully automatic 4-stage chargers are safety, stability, and high efficiency. With a safe protection mechanism and smart fan control, it is convenient and secure to use. The protections the charger equips are listed as follows.
● Short Circuit Protection
● Over Voltage Protection
● Over Current Protection
● Over Temperature Protection
● Battery Over Temperature Charging Protection
There is a microprocessor controller in the charger to control voltage and monitor current. This way, it can improve charging accuracy and battery life. The input voltage range is from 100V to 220V and the frequency range is between 50Hz and 60Hz.
The advantages of the fully automatic 4-stage chargers are safety, stability, and high efficiency. With a safe protection mechanism and smart fan control, it is convenient and secure to use. The protections the charger equips are listed as follows.
● Short Circuit Protection
● Over Voltage Protection
● Over Current Protection
● Over Temperature Protection
● Battery Over Temperature Charging Protection
Model :
WSC-1230
Description
WSC-1230 is an AC-to-DC 12V 30Amp charger with a built-in 4-stage smart battery - a high-efficiency, compact, lightweight, and multiple protection design that keeps the battery in perfect condition and is ideal for all kinds of Lead-Acid/GEL/AGM batteries.
KAY FEATURES

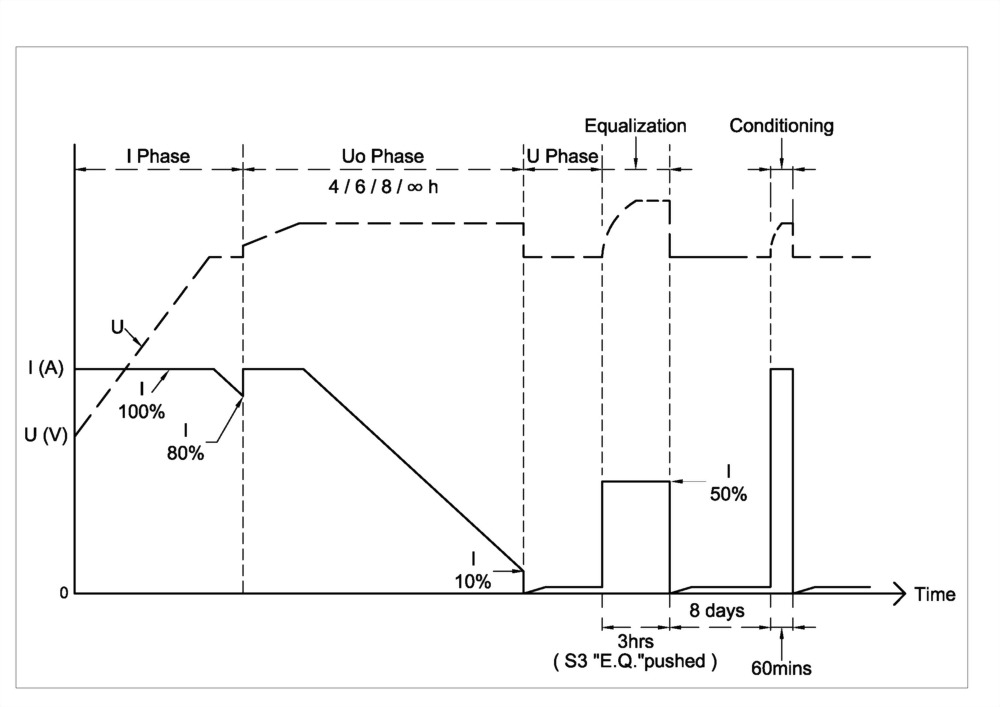

- Fully automatic 4-stage chargers (I-Uo-U-Equalization).
- Full range AC input.
- High efficiency.
- Microprocessor controller inside.
- The battery charger and power supply mode are selectable.
PROTECTION
- Short circuit protection
- Over voltage protection
- Over current protection
- Over temperature protection
- Battery over temperature charging protection
APPROVAL
- CE
COUNTRY OF ORIGIN
- Taiwan
Specifications
- Input voltage range: 100 ~ 240V AC
- Input frequency: 50~60 Hz
- Power factor correction: >0.97
- Efficiency at 230V AC: >91%
- Efficiency at 115V AC: >88%
- Input current at 230V AC: 2.2A
- Input current at 115V AC: 4.2A
- Charge mode: Normal 3-Stage / Equalization 4-Stage
-
Rated output voltage: 12V
- Output charging voltage: 14V / 14.4V / 14.8V
- Output float voltage: 13.5V / 13.8V
- Output power mode voltage: 13.2V
- Output charging current: 0~30A
- Equalization mode: 14.8V / 15.5V (0 ~ 8A)
- Half power mode (Silent mode): 0~15A
- Battery connection: 2
- Battery capacity: 300Ah
- Operating temperature: -20°C ~ 50°C
- Dimension (L * W * H): 265 * 171 * 70 mm
- Weight: 1.6 kg
- Option: Remote control RC-600
- Option: Temperature compensation TF-100
Features
- Microprocessor controller inside.
- Full range AC input.
- Power factor correction>0.97.
- High efficiency.
- 4 Stages charging I-Uo-U-Equalization.
- Battery charger and power supply selectable.
- Compact and lightweight.
- Maintains batteries in perfect condition and prolongs their useful life.
Applications
- Battery types: Lead-acid/GEL/AGM
