Description

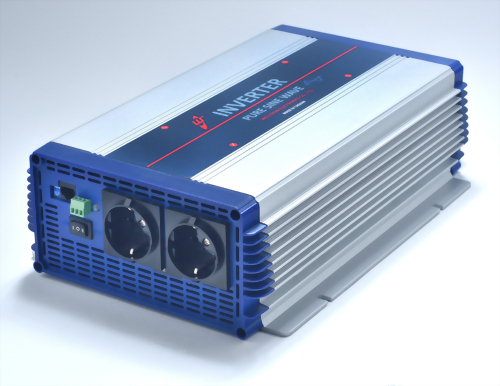

1600W WSI pure sine wave inverter is MCU controlled to provide high efficiency and high stability for resistive, capacitive, and inductive load, suitable for commercial vehicles, marine, etc. It has power saving mode to be energy efficient and high-frequency switching.

PROTECTION

• Input low voltage
• Input over voltage
• Low battery alarm
• Over temperature
• Overload
• Short circuit

APPROVAL

• WSI-160S-12E/WSI-160S-24E: CE.
• WSI-160S-12A/WSI-160S-24A: Meet UL 62368-1, FCC Part 15(B) Class B.


COUNTRY OF ORIGIN

• Taiwan

Specification

Model	WSI-160S-12E	WSI-160S-12A	WSI-160S-24E	WSI-160S-24A
Continuous output power	1,600W
Surge output power	3,200W
Rated input voltage	12V DC		24V DC
Input fuse rating	35A * 6		35A * 3
Output voltage	230V AC ± 3%	115V AC ± 3%	230V AC ± 3%	115V AC ± 3%
Output frequency	50/60Hz switchable
Output wave form	Pure sine wave
Total harmonic distortion	<2.5%
Power saving	Normal/Power saving mode selectable
Idle current	<1.6A	<0.9A	<1.1A	<0.7A
Input voltage range	10.7V ~ 16V)		21.4V ~ 32V
Low voltage alarm	10.7V		21.4V
Low voltage shutdown	10V		20V
High voltage shutdown	>16.5V		>33V
Overload shutdown	≧1,760W
Short circuit shutdown	1 ~ 1.5 Second
Input reverse protection	Fuse
Max efficiency	>90%
Dimension (L * W * H)	377.5 * 233 * 103 mm
Weight	4.9 kgs
Operating temperature	-20 ~ 50°C
Option	Remote control RC-300

Features

• Input and output fully isolated design
• Pure sine wave output (THD < 2.5%)
• High Efficiency (max. > 90%)
• MCU-based
• Temperature-controlled cooling fan
• Output frequency 50/60Hz (switchable)
• Power saving mode

Applications

• Commercial vehicle
• Marine

• Home electronics
• Office equipment
• Power tools
• Electric Appliances
